Grading Buckets For Rear Backhoe

Rear Backhoe Grading Buckets

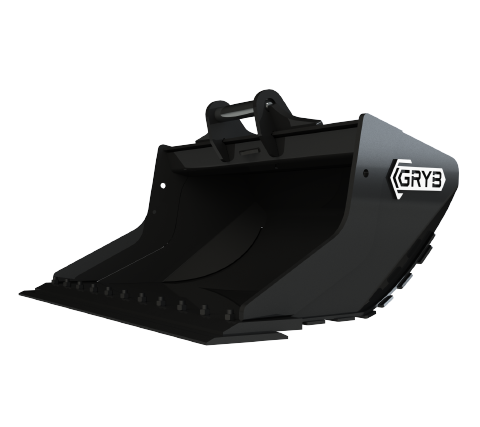

This grading bucket with minimized corners is a powerful all-around too & the perfect attachment for your Rear Backhoe Machine. Designed for optimal use with our GTR Tiltrotators and quick couplers with a long and flat bottom, our symmetrical grading buckets with minimized corners and rounded back design allow the material to release and fill easier without clogging during digging.

The hanger bracket angle allows you to rotate the bucket easily without spilling any material.
Stronger materials used make the grading bucket a low-weight-durable construction.
One of the longest service lives in the industry.
Available with a bolt-on cutting edge.

catalog

Selling sheet

Get a quote

Product Specifications

Model	Machine Weight (tons)	Weight (lbs)	Width (in)	Volume (Yd³)
GEF035-36C-S40	2,3 to 3,9	260	36	0.18
GEF035-42C-S40	2,3 to 3,9	290	42	0.2
GEF035-48C-S40	2,3 to 3,9	330	48	0.25
GEF050-42D-S40	4 to 5,9	360	42	0.3
GEF050-48D-S40	4 to 5,9	400	48	0.35
GEF075-48D-S45	6 to 9,9	600	48	0.48
GEF075-54E-S45	6 to 9,9	665	54	0.55
GEF120-60E-S60	10 to 15	1140	60	0.75
GEF120-66F-S60	10 to 15	1245	66	0.85
GEF120-96G-S60	10 to 15	1635	96	1.32
GEF160-60F-S60	16 to 19	1340	60	1
GEF160-66G-S60	16 to 19	1465	66	1.15
GEF200-48F-S70	20 to 23	1370	48	0.9
GEF200-66G-S70	20 to 23	1820	66	1.35
GEF200-72G-S70	20 to 23	1995	72	1.5
GEF200-96I-S70	20 to 23	2450	96	2.1
GEF270-72H-S70	24 to 29	2445	72	1.8
GEF270-78H-S70	24 to 29	2640	78	2
