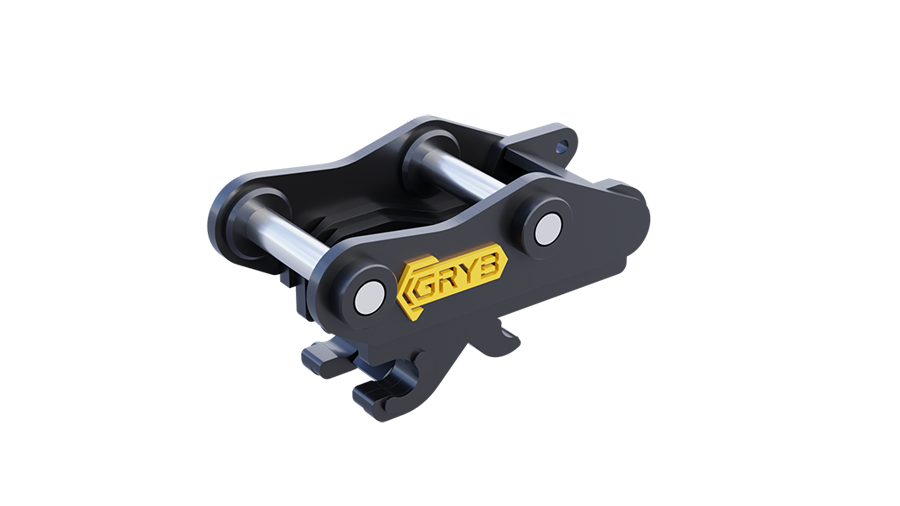

PIN GRABBER QUICK COUPLER

| | | | |

-180° 180°

Our hydraulic pin grabber quick coupler is made of heavy-duty steel and is equipped with a dual safety system in case of hydraulic failure. With the sliding jaw design, the GRYB pin grabber quick coupler can fit into multiple pin centers, allowing it to grab various OEM attachments with ease.

Dual safety system.
Compatible with multiple types of attachments.
Maximizes the efficiency of your attachments.
Available for excavators from 10 to 85 tons.

catalog

Selling sheet

Get a quote

Product Specifications

From the cab, you can visually see when the front safety is locked in place, thus ensuring the bucket won't fall. This is done by the cylinder moving on top of the front pin. Before the operator can disconnect, the GRYB hydraulic pin grabber quick coupler requires the system pressure against the integrated lock valve. This feature reduces the likelihood of releasing your attachment unexpectedly because of the full-system pressure requirement before hydraulic oil flows to the pin grabber quick coupler's cylinder. The upgraded two-stage control protects the operator from bumping the wrong switch in the cab. The in-cab control features two buttons: the first requires the operator to press and hold down for two seconds, then at the same time, press the second button. This reverses the hydraulic flow to release the attachment.

Model	Category	Machine Weight (tons)	Weight (lb)	Front Pin Diameter (mm)	Locking Type	Locking System
PGH060	120	10 to 15	490	60	Sliding jaw	Hydraulic
PGH065	120	10 to 15	485	65	Sliding jaw	Hydraulic
PGH070	160	16 to 19	675	70	Sliding jaw	Hydraulic
PGH080	160 to 270	16 to 29	810	80	Sliding jaw	Hydraulic
PGH090	270 to 300	24 to 39	1240	90	Sliding jaw	Hydraulic
PGH100	300 to 400	30 to 49	1435	100	Sliding jaw	Hydraulic
PGH110	400	40 to 49	1620	110	Sliding jaw	Hydraulic
