Tiltrotators For Excavators

product--img

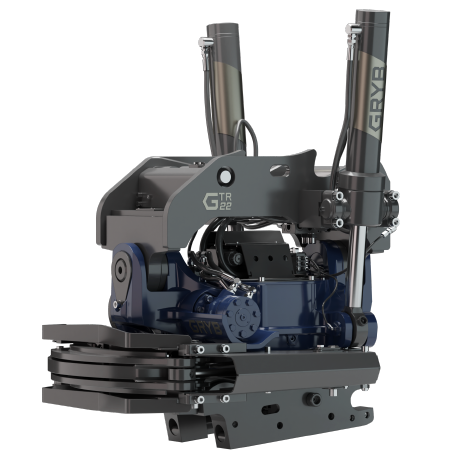

GTR Tiltrotators

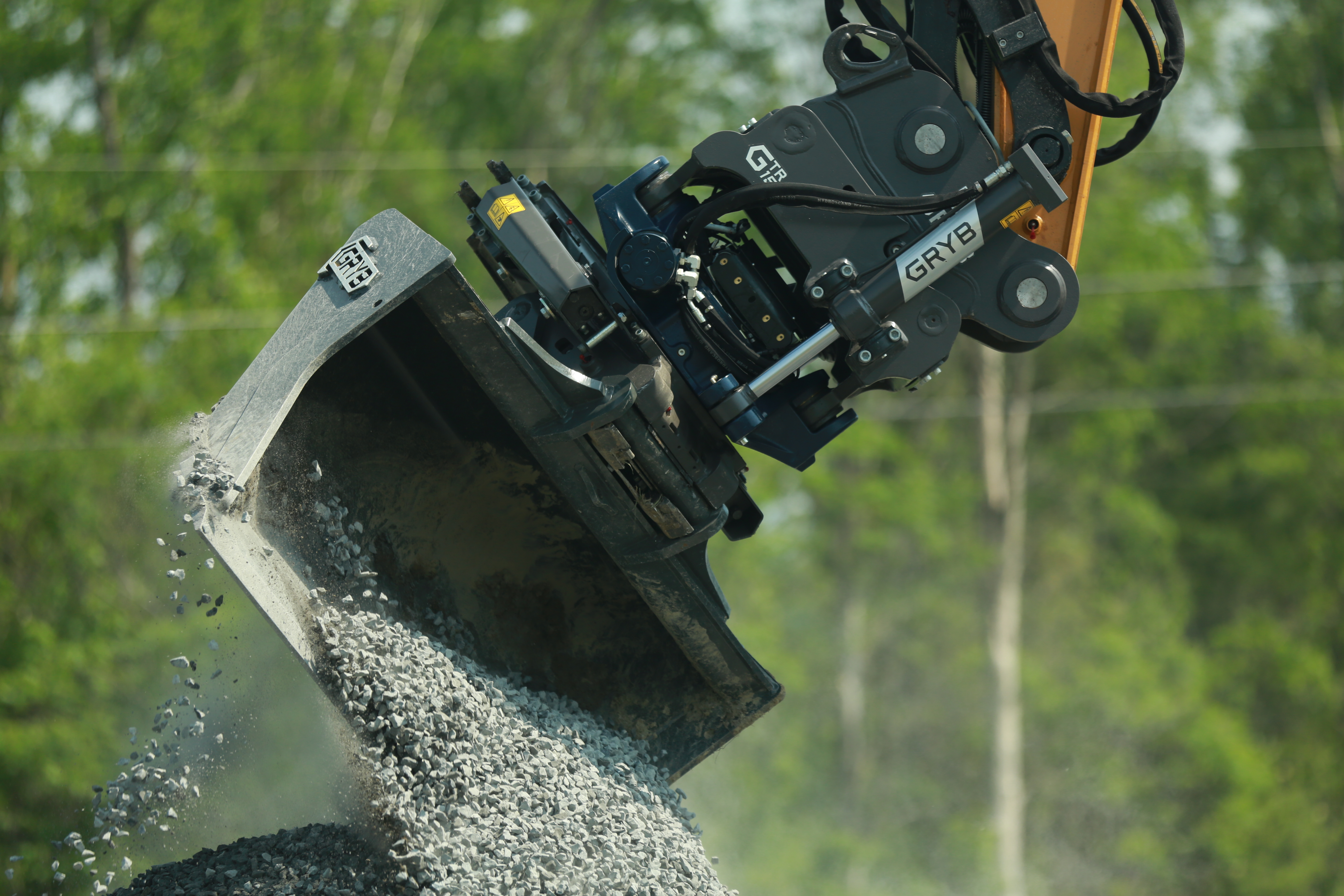

The GRYB Tiltrotator is an extension of the arm, allowing you to tilt and/or rotate any bucket/attachment you connect to it. It features a grease-lubricated gear case, constant 360° rotation, and 40° tilt in all directions. The tiltrotator can be mounted on the quick coupler or directly on the excavator's arm. The ease of maneuvering the tiltrotator using a joystick and rocker switch allows the operator to easily and efficiently perform advanced and precision work without having to move the machine. It also makes the work environment safer, both for the operator and for people working near the machine. The GTR Tiltrotator is equipped with double-acting cylinders for tilting.

  • Tilting 2 x 45°
  • Infinite rotation 360˚
  • Integrated Grip Module
  • Grease-filled gear housing
  • 12/24V DC - Hardlock® coupler
  • Load holding cylinders
  • Rotation and tilt sensors
  • Robust critical components

Product Specifications

Model

Machine Weight (tons)

Approx weight (lbs)

Dimensions A / B / C / D

Recommended max oil flow (GPM)

Working pressure max (psi)

Tilt torque at 3'000PSI / 21 Mpa (lb/ft) Rotation speed (sec/rotation) Turn torque (lb/ft) Max breakout torque (lb/ft) Max breakout force (lb) Max bucket width (in)
GTR-04 2 to 4 216 28 / 18 / 13 / 17 16 3,046 2,876 7 2,212   8,992 42
GTR-06 3 to 6 331 28 / 19 / 14 / 16 21 3,046 9,072 7 3,687 32,452 11,240 52
GTR-10 6 to 10 518 34 / 23 / 17 / 24 26 3,046 18,660 7 3,687 55,317 15,736 56

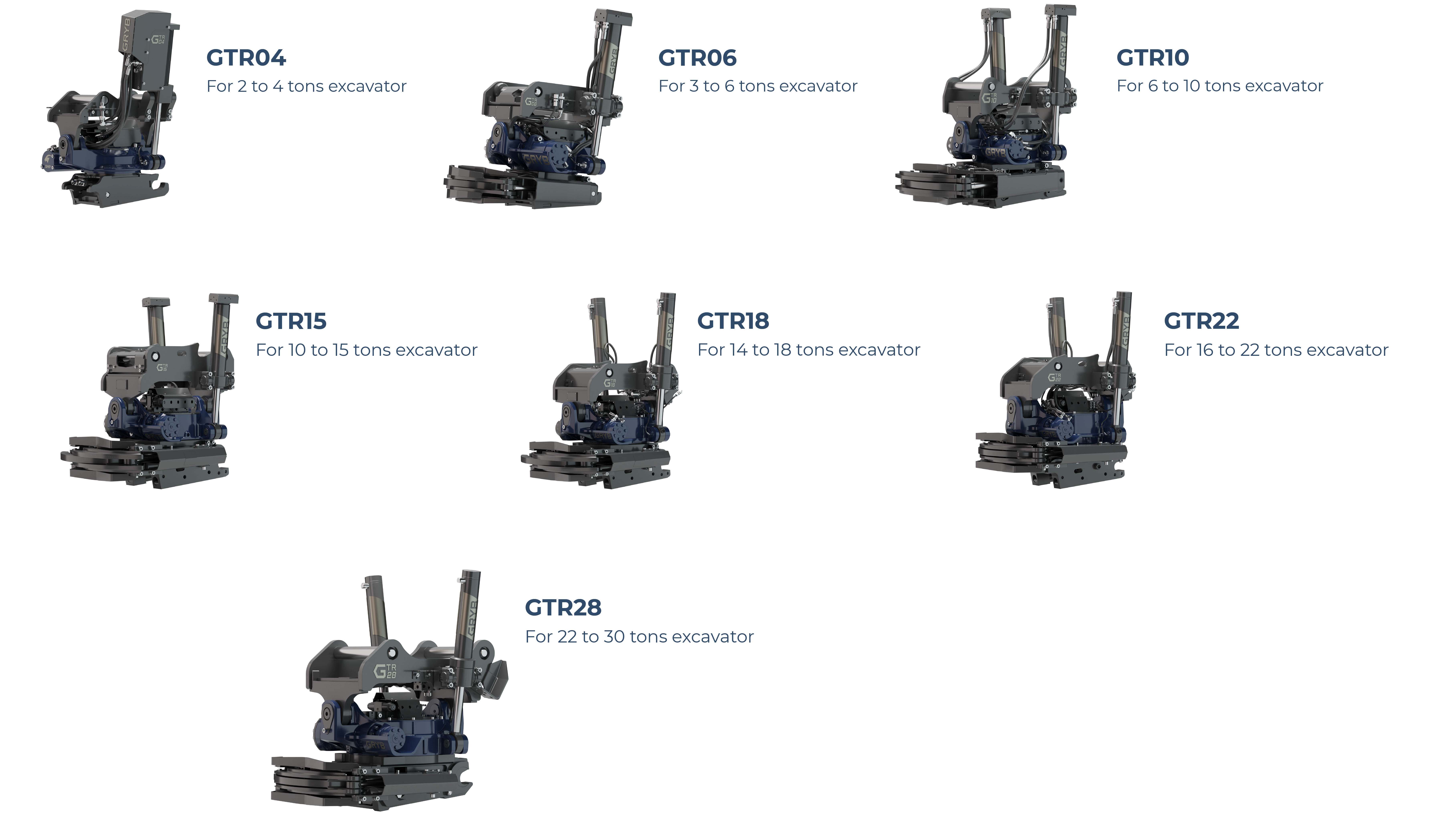

Tiltrotators fitted to crawler and excavators from 10 to 30 tons.

  • Fast change coupler system available on S60 and S70 attachment.
  • Direct mount or machine coupler.
  • An integrated grip module is available on all models.
  • 3D grade control
  • Wheel/track steering
