SYMMETRICAL DIGGING BUCKET
SYMMETRICAL

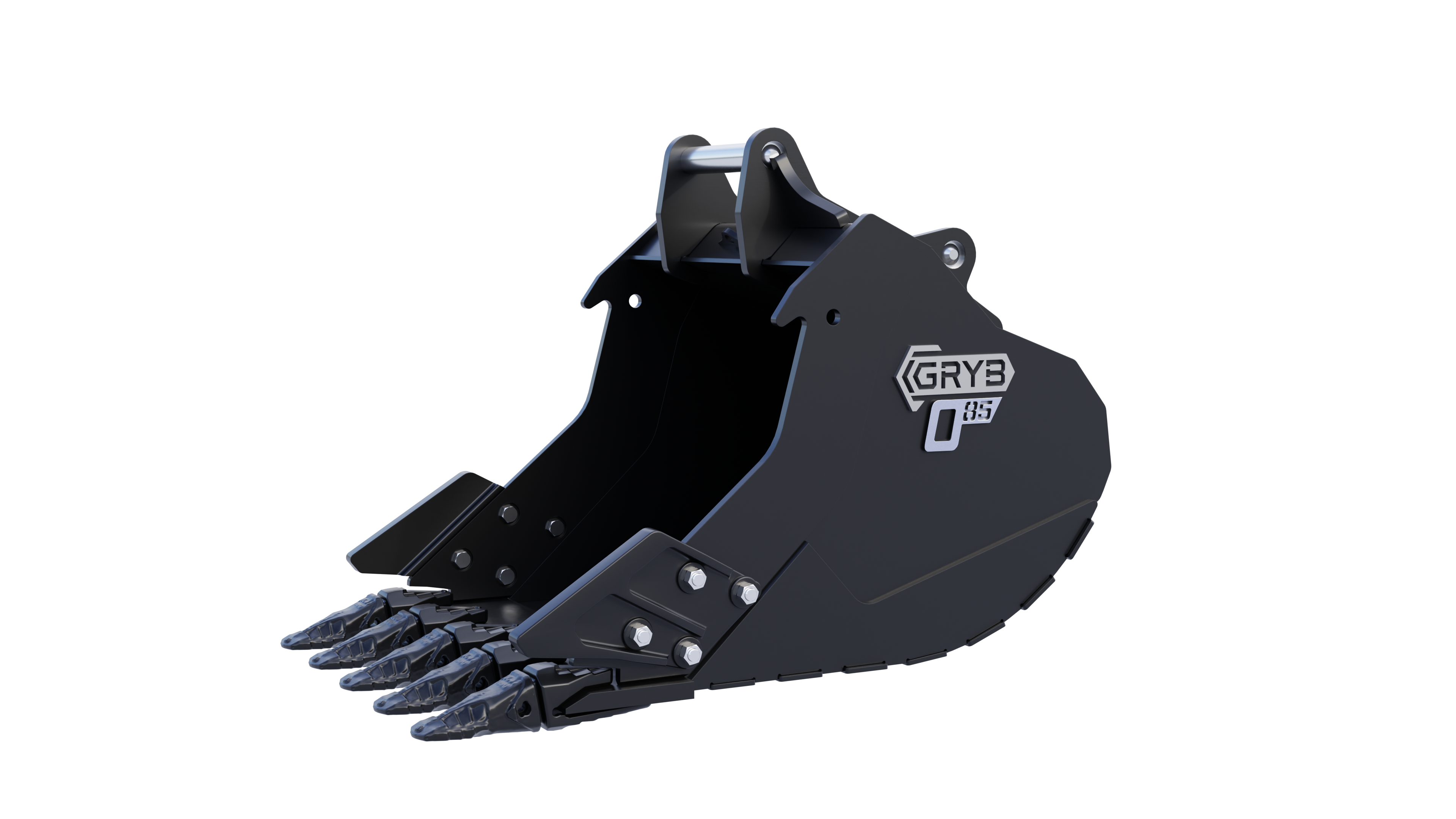

The GRYB symmetrical digging bucket is a perfect marriage between efficiency and durability. Its optimized design with wear-resistant steel makes it lighter without sacrificing its durability. The bucket profile with a reduced height makes it a great tool to use with a tiltrotator. This symmetrical digging bucket is ready for any digging scenario.
- Optimized material selection to lower weight without compromising durability.
- Pre-drilled holes ready for bolt-on side cutters.
- Back wear plates made of abrasion-resistant AR500 steel.
- Available in multiple teeth configurations.
Product Specifications
|
Model |
Machine Weight (tons) |
Type |
Weight (lbs) |
Width (in) |
Volume (Yd³) |
Number of teeth |
|---|---|---|---|---|---|---|
| GED120-30E5-S60 | 10 to 15 | HD | 1125 | 32 | 0.7 | 5 |
| GED120-30Z5-S60 | 10 to 15 | SHD | 1125 | 32 | 0.7 | 5 |
| GED120-36F5-S60 | 10 to 15 | HD | 1225 | 38 | 0.85 | 5 |
| GED120-36F6-S60 | 10 to 15 | HD | 1255 | 38 | 0.85 | 6 |
| GED120-36Z5-S60 | 10 to 15 | SHD | 1225 | 38 | 0.85 | 5 |
| GED120-36Z6-S60 | 10 to 15 | SHD | 1255 | 38 | 0.85 | 6 |
| GED120-40F5-S60 | 10 to 15 | HD | 1290 | 42 | 1 | 5 |
| GED120-40F6-S60 | 10 to 15 | HD | 1320 | 42 | 1 | 6 |
| GED120-40Z5-S60 | 10 to 15 | SHD | 1290 | 42 | 1 | 5 |
| GED120-40Z6-S60 | 10 to 15 | SHD | 1320 | 42 | 1 | 6 |
| GED160-36F5-S60 | 16 to 19 | HD | 1470 | 38 | 0.95 | 5 |
| GED160-36F6-S60 | 16 to 19 | HD | 1500 | 38 | 0.95 | 6 |
| GED160-36Z5-S60 | 16 to 19 | SHD | 1470 | 38 | 0.95 | 5 |
| GED160-36Z6-S60 | 16 to 19 | SHD | 1500 | 38 | 0.95 | 6 |
| GED160-40G5-S60 | 16 to 19 | HD | 1555 | 42 | 1.1 | 5 |
| GED160-40G6-S60 | 16 to 19 | HD | 1585 | 42 | 1.1 | 6 |
| GED160-40Z5-S60 | 16 to 19 | SHD | 1555 | 42 | 1.1 | 5 |
| GED160-40Z6-S60 | 16 to 19 | SHD | 1585 | 42 | 1.1 | 6 |
| GED160-42G5-S60 | 16 to 19 | HD | 1600 | 44 | 1.15 | 5 |
| GED160-42G6-S60 | 16 to 19 | HD | 1625 | 44 | 1.15 | 6 |
| GED160-42G7-S60 | 16 to 19 | HD | 1650 | 44 | 1.15 | 7 |
| GED160-42Z5-S60 | 16 to 19 | SHD | 1600 | 44 | 1.15 | 5 |
| GED160-42Z6-S60 | 16 to 19 | SHD | 1625 | 44 | 1.15 | 6 |
| GED160-42Z7-S60 | 16 to 19 | SHD | 1650 | 44 | 1.15 | 7 |
| GED200-42G5-S70 | 20 to 23 | HD | 2055 | 45 | 1.3 | 5 |
| GED200-42G6-S70 | 20 to 23 | HD | 2090 | 45 | 1.3 | 6 |
| GED200-42Z5-S70 | 20 to 23 | SHD | 2055 | 45 | 1.3 | 5 |
| GED200-42Z6-S70 | 20 to 23 | SHD | 2090 | 45 | 1.3 | 6 |
| GED200-48H5-S70 | 20 to 23 | HD | 2210 | 51 | 1.55 | 5 |
| GED200-48H6-S70 | 20 to 23 | HD | 2245 | 51 | 1.55 | 6 |
| GED200-48Z5-S70 | 20 to 23 | SHD | 2210 | 51 | 1.55 | 5 |
| GED200-48Z6-S70 | 20 to 23 | SHD | 2245 | 51 | 1.55 | 6 |
| GED270-42G5-S70 | 24 to 29 | HD | 2495 | 45 | 1.5 | 5 |
| GED270-42Z5-S70 | 24 to 29 | SHD | 2495 | 45 | 1.5 | 5 |
| GED270-48H5-S70 | 24 to 29 | HD | 2675 | 51 | 1.75 | 5 |
| GED270-48H6-S70 | 24 to 29 | HD | 2725 | 51 | 1.75 | 6 |
| GED270-48Z5-S70 | 24 to 29 | SHD | 2675 | 51 | 1.75 | 5 |
| GED270-48Z6-S70 | 24 to 29 | SHD | 2725 | 51 | 1.75 | 6 |
| GED270-54H6-S70 | 24 to 29 | HD | 2900 | 57 | 2 | 6 |
| GED270-54H7-S70 | 24 to 29 | HD | 2955 | 57 | 2 | 7 |
| GED270-54Z6-S70 | 24 to 29 | SHD | 2900 | 57 | 2 | 6 |
| GED270-54Z7-S70 | 24 to 29 | SHD | 2955 | 57 | 2 | 7 |
All types of excavators
- Only available with symmetrical lugs.
- HD or SHD configurations
- Standard teeth, wide teeth or no teeth.
- Bolt-on side cutters are available.
